Maximum Productivity: 120 m3/h;Total Power: 210 kw;
Discharge Height: 4 m;
Main Machine: JS2000 twin-shaft forced concrete mixer
Batching Machine: PLD3200 with the weighing hopper capacity reaching 3200 L.

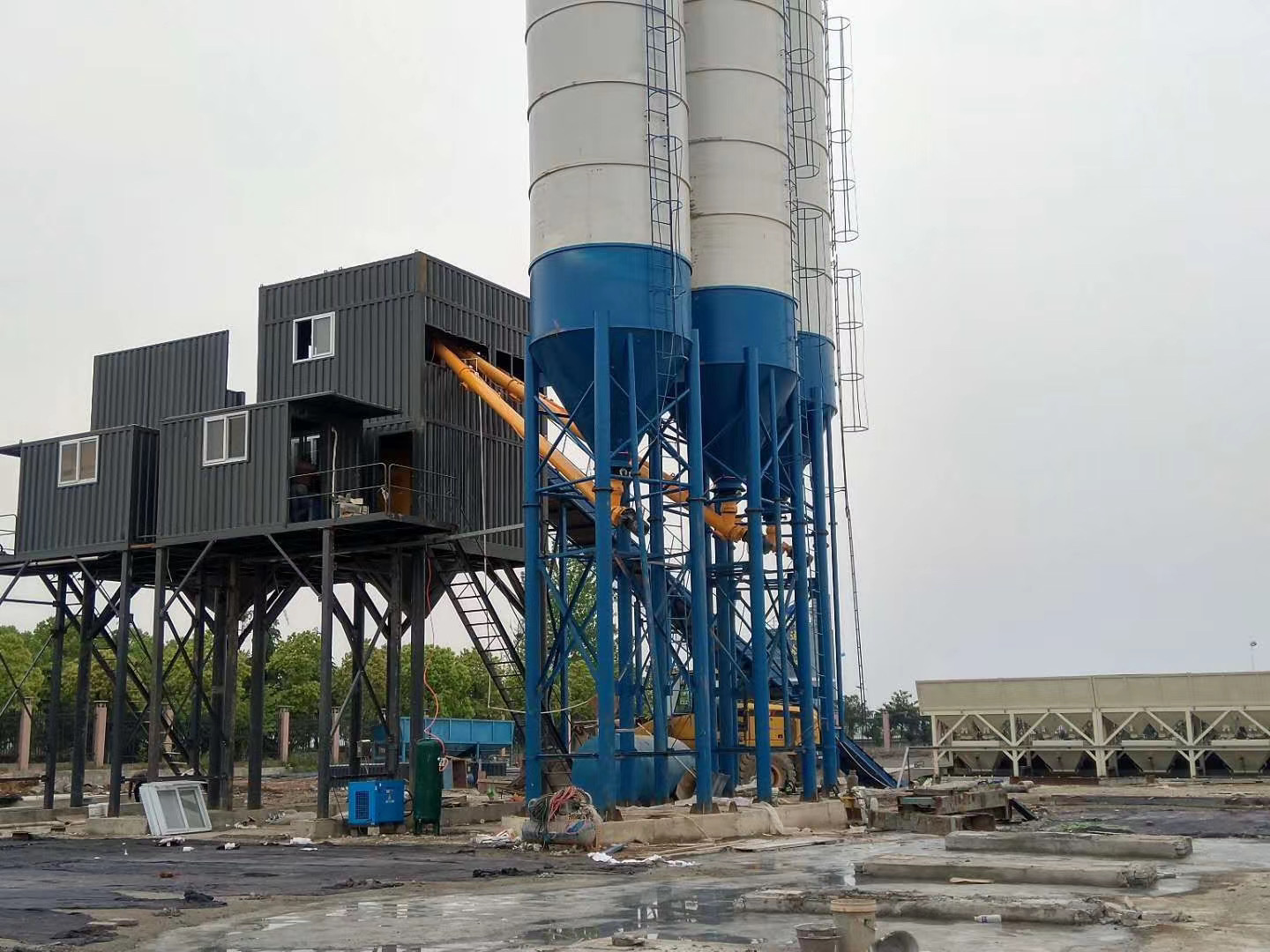

HZS120 concrete mixing plant consists of twin-shaft mixer, batching machine, cement silo, screw conveyor, belt conveyor, computer controlling system. The main machine JS2000 is forced and efficient concrete mixer and it can mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar. It presents many advantages: high productivity, short mixing time, nice appearance. It is widely applied in large and middle building sites, highways, bridge project, and prefabricated concrete plant. It is ideal for producing commercial concrete.
Concrete mixing system
JS2000 concrete mix is horizontal twin-shaft forced mixing machine with two advantages of independent performance or forming simple concrete mixing plants with PLD batching machines. It acts as the main machine for mixing plants. The twin-shaft mixer mixes evenly and efficiently. Its mixing quality is much higher.
Batching system:
PLD3200 batching machine is automatic material distribution part used before the mixing process. It can fulfill automatically 3-6 kinds of material batching process like sand, stone and cement according to concrete ratio designed by user. This series of products adopt electronic weighing and digital display. It is characterized by accurate weighing, high batching accuracy, fast speed, strong controlling ability, simple operation.
Parameters:
| Model | HZS90 | HZS120 | HZS180 | ||
| The Whole Station | Max. Productivity | 90 m3/h | 120 m3/h | 180 m3/h | |
| Discharge Height | 3.8 m | 4 m | 4 m | ||
| Working Cycle | 60 s | 60 s | 60 s | ||
| Dimension (LxWxH) | 58555x12376x18704 mm | 60120x13700x18704 mm | 43538x24000x18704 mm | ||
| Power | 145 kw | 210 kw | 260 kw | ||
| Concrete Mixer | JS1500 | JS2000 | JS3000 | ||
| Batching Machine | PLD2400 | PLD3200 | PLD4800 | ||
| Pneumatic system | Air Compressor Model | 1.8-7 | 1.8-7 | 1.8-7 | |
| Nominal Displacement | 1.67 m3/min | 1.67 m3/min | 1.67 m3/min | ||
| Rated Discharge Pressure | 0.8 mpa | 0.8 mpa | 0.8 mpa | ||
| Motor power | 11 kw | 15 kw | 15 kw | ||
| Measurement Accuracy of Weighing system | Aggregate | ±2% | ±2% | ±2% | |
| Cement | ±1% | ±1% | ±1% | ||
| Water | ±1% | ±1% | ±1% | ||
| Admixture | ±1% | ±1% | ±1% | ||
