Maximum Productivity: 90 m3/h;
Discharge Height: 3.8 m, can be customized;
Main Machine: JS1500 twin-shaft forced concrete mixer
Batching Machine: PLD2400 with the weighing hopper capacity reaching 2400 L.

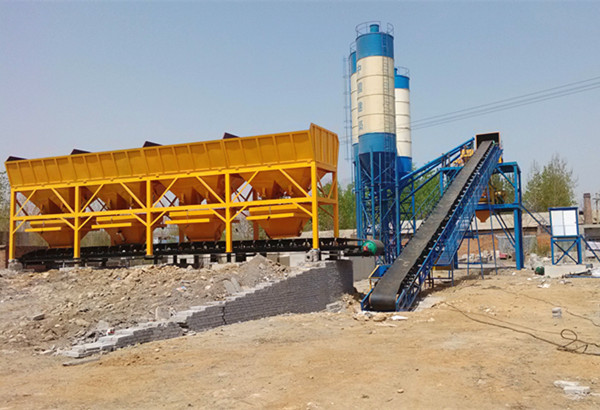

HZS60 concrete mixing plant includes the cement silo, screw conveyor, belt conveyor, PLD batching machine,
twin-shaft forced concrete mixing machine, computer controlling and measuring system, etc. And also there are
manual control system, automatic head-drop compensation and aggregate moisture compensation. It can be used
for industry, construction, road, railway, bridge, water conservation, ports, and so on. Working as the concrete mixing
equipment, it can meet the requirements for different forms and specifications.
Excellent Mixing Performance
1. The concrete mixer JS1500 (The main machine for the mixing plant) has the strong mixing ability with uniform
mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional
ratio of uniformity.
2. The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts.
3. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials.
The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines
durability and reliability;
4. The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position,
fixed time and fixed quantity;
5. The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.
Parameters
| Model | HZS75 | HZS90 | HZS120 | ||
| The Whole Station | Max. Productivity | 75 m3/h | 90 m3/h | 120 m3/h | |
| Discharge Height | 3.8 m | 3.8 m | 4 m | ||
| Working Cycle | 60 s | 60 s | 60 s | ||
| Dimension (LxWxH) | 24350x10595x18704 mm | 58555x12376x18704 mm | 60120x13700x18704 mm | ||
| Power | 120 kw | 145 kw | 210 kw | ||
| Concrete Mixer | JS1500 | JS1500 | JS2000 | ||
| Batching Machine | PLD2400 | PLD2400 | PLD3200 | ||
| Pneumatic system | Air Compressor Model | 1.8-7 | 1.8-7 | 1.8-7 | |
| Nominal Displacement | 1.67 m3/min | 1.67 m3/min | 1.67 m3/min | ||
| Rated Discharge Pressure | 0.8 mpa | 0.8 mpa | 0.8 mpa | ||
| Motor power | 11 kw | 11 kw | 15 kw | ||
| Measurement Accuracy of Weighing system | Aggregate | ±2% | ±2% | ±2% | |
| Cement | ±1% | ±1% | ±1% | ||
| Water | ±1% | ±1% | ±1% | ||
| Admixture | ±1% | ±1% | ±1% | ||
